E Power

Product Description

The e-Power Series includes 10-20-30-40-60-80-100-120 kVA three-phase models and uses double conversion on-line technology (VFI) with an isolation transformer on the inverter output. The load is powered continuously by the inverter with a filtered, stabilised and regulated sinewave supply. The input and output EMI filters considerably increase the immunity of the load to mains disturbances and surges.

e-Power Series provides maximum protection for vital 'missioncritical' networks, security applications (electromedical) and industrial applications thanks to its outstanding mechanical and electrical design.

e-Power Series is supplied with software as standard and can be remotely monitored using the Teleguard system from anywhere in the world. Additional battery extension packs allow the standard battery runtime to be extended up to several hours.

Main Features

• Wide input voltage range
• Small footprint
• LCD display
• High efficiency
• Internal Static and Maintenance/Manual Bypass Switch
• Galvanic isolation during normal operation
• Intelligent automatic battery test (every 24Hrs)
• Compatible with all platforms
• Onboard self diagnostic system
• (Remote) Monitoring and Auto-shutdown software
• SNMP adapter ready (option)
• Unique parallel / parallel redundant capability
• Ability to handle 100% phase imbalance on output while maintaining perfect balance on the input phases.

Advanced Battery Solutions

• Temperature compensation, prevents overcharging
• Programmable battery test
• Compatible with lead acid and nickel cadmium batteries
• Heavy duty charger also supports large battery capacities
• high level diagnostics: event log with 128 messages, states, measurements and alarms available from the built-in LCD in several languages
• Simple to install
• capability to install the UPS into any distribution system (neutral not required on rectifier input)
• capability to separate the rectifier/bypass power networks and to power these from two separate sources, without Galvanic isolation (necessary on UPS without an output transformer)
• capabilty of regulating the output voltage (to offset voltage drops down long cable runs)
• built-in automatic and manual battery test
• feature, battery deep discharge protection and
• temperature compensating charger
• BACK FEED protection: to avoid energy feeding back into the mains supply should a fault occur.

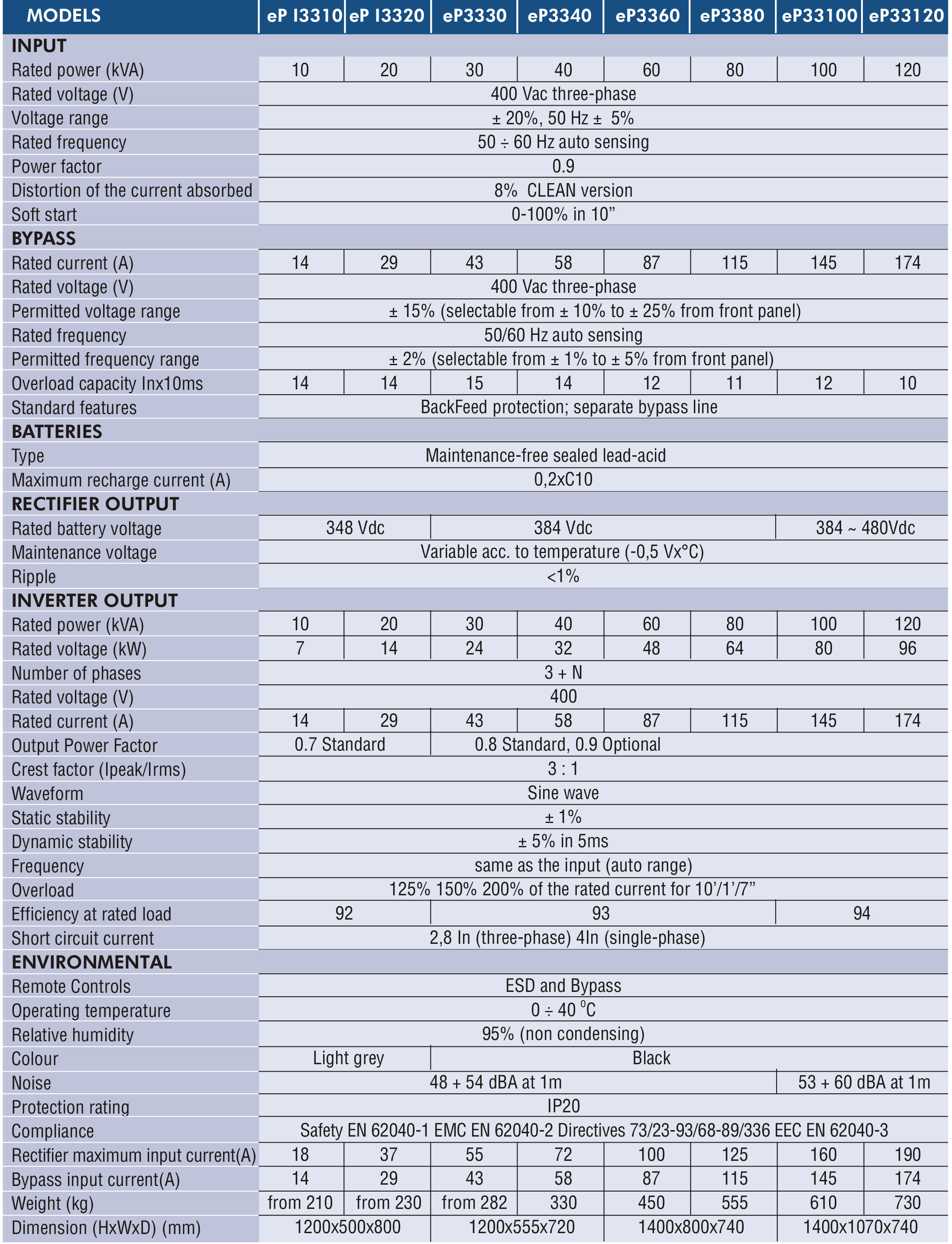

Specification

(eP Series 3ø in 3ø out) 10 to 120 kVA

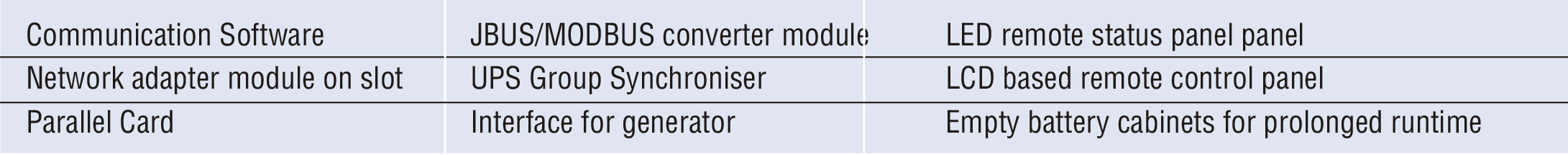

eP I3310~eP I3320 & eP 3330~eP 33120 OPTIONS
